Color

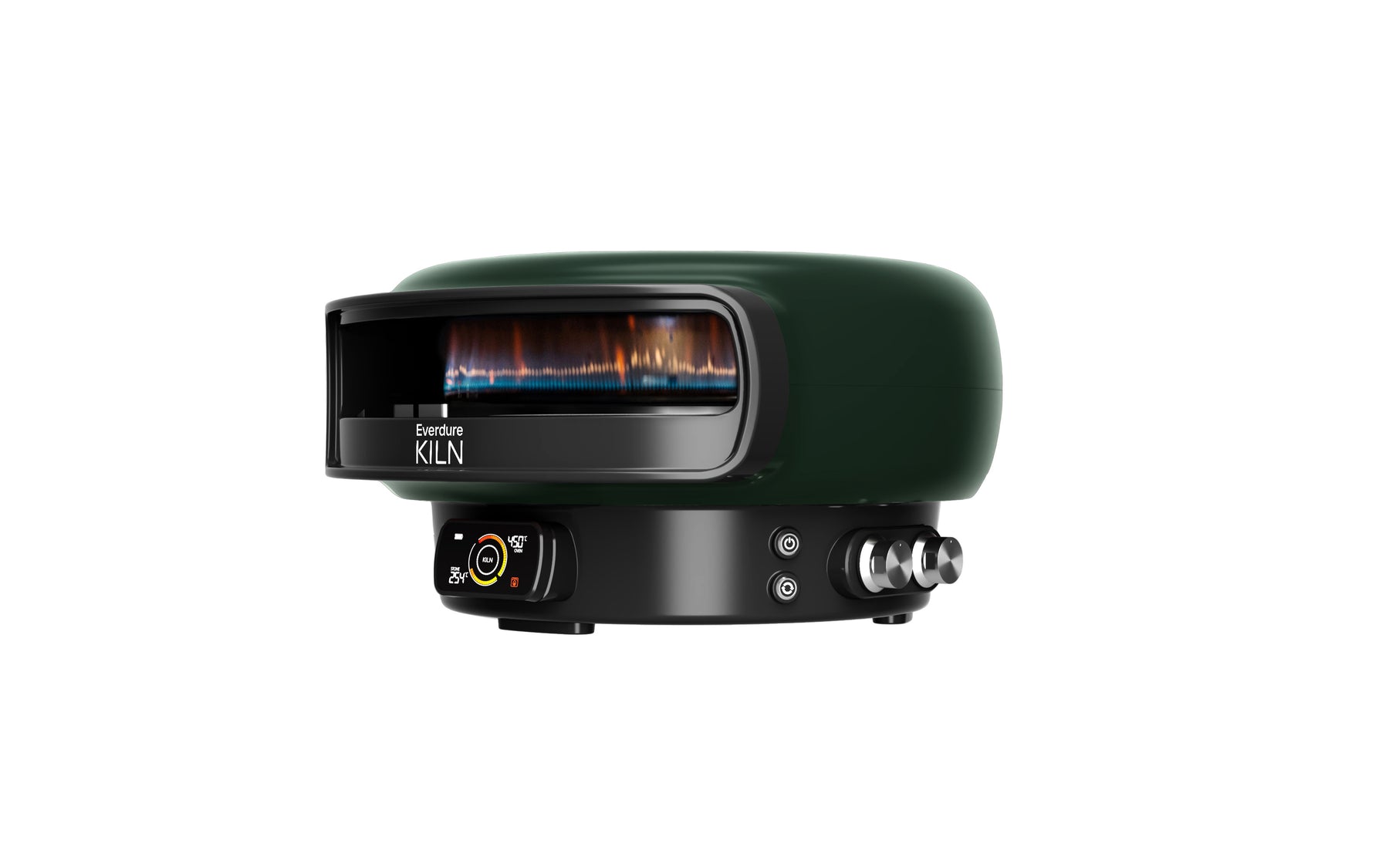

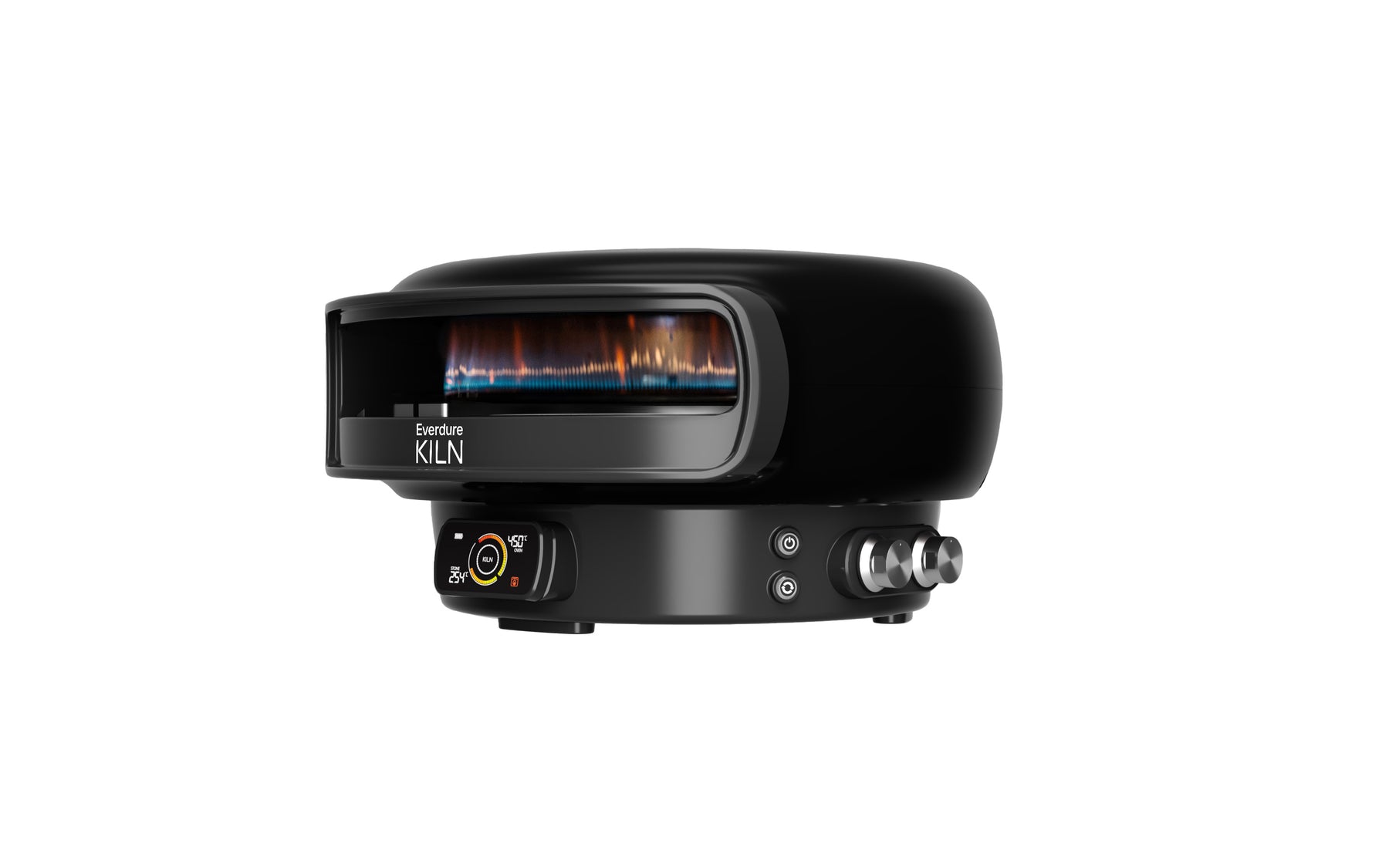

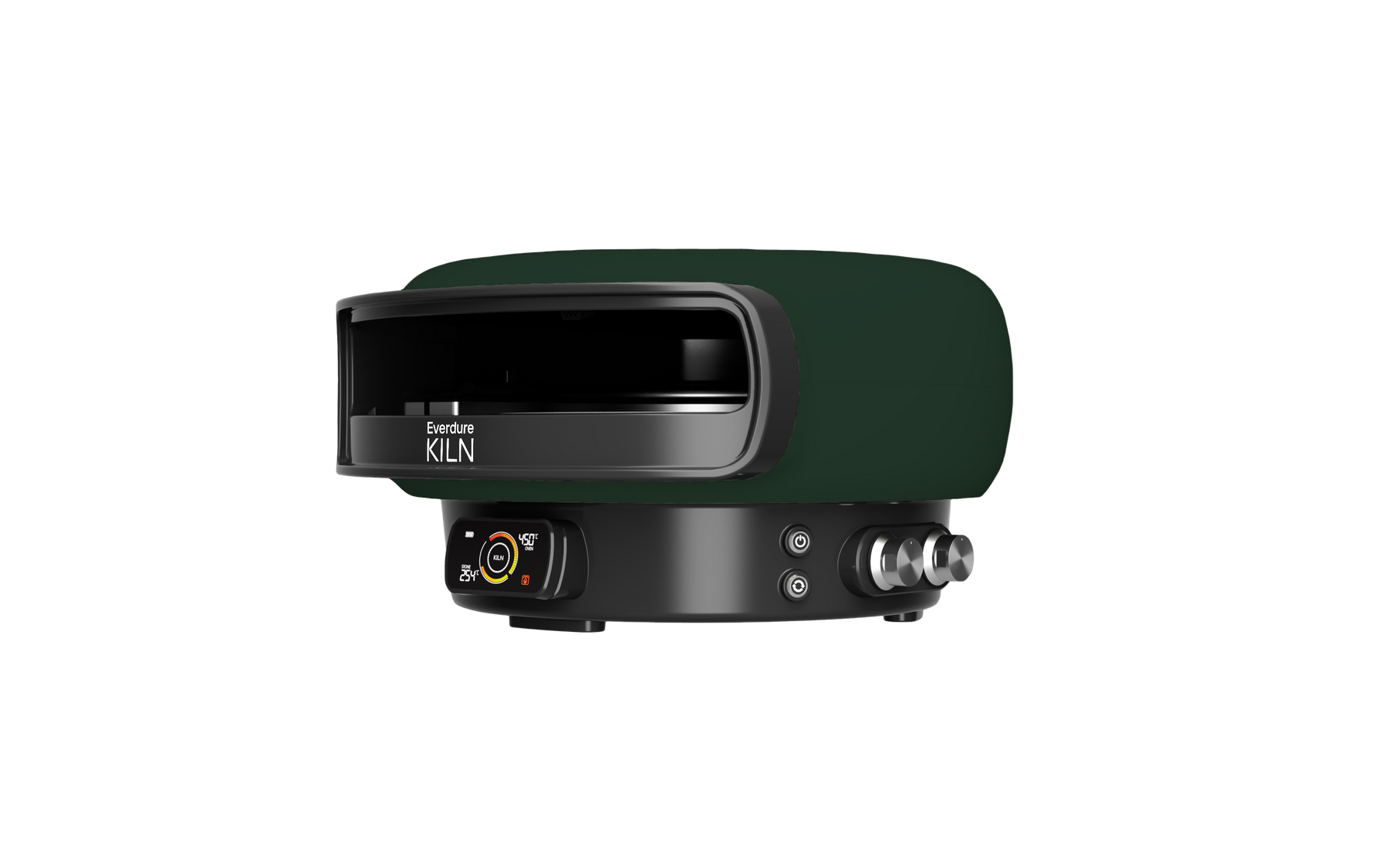

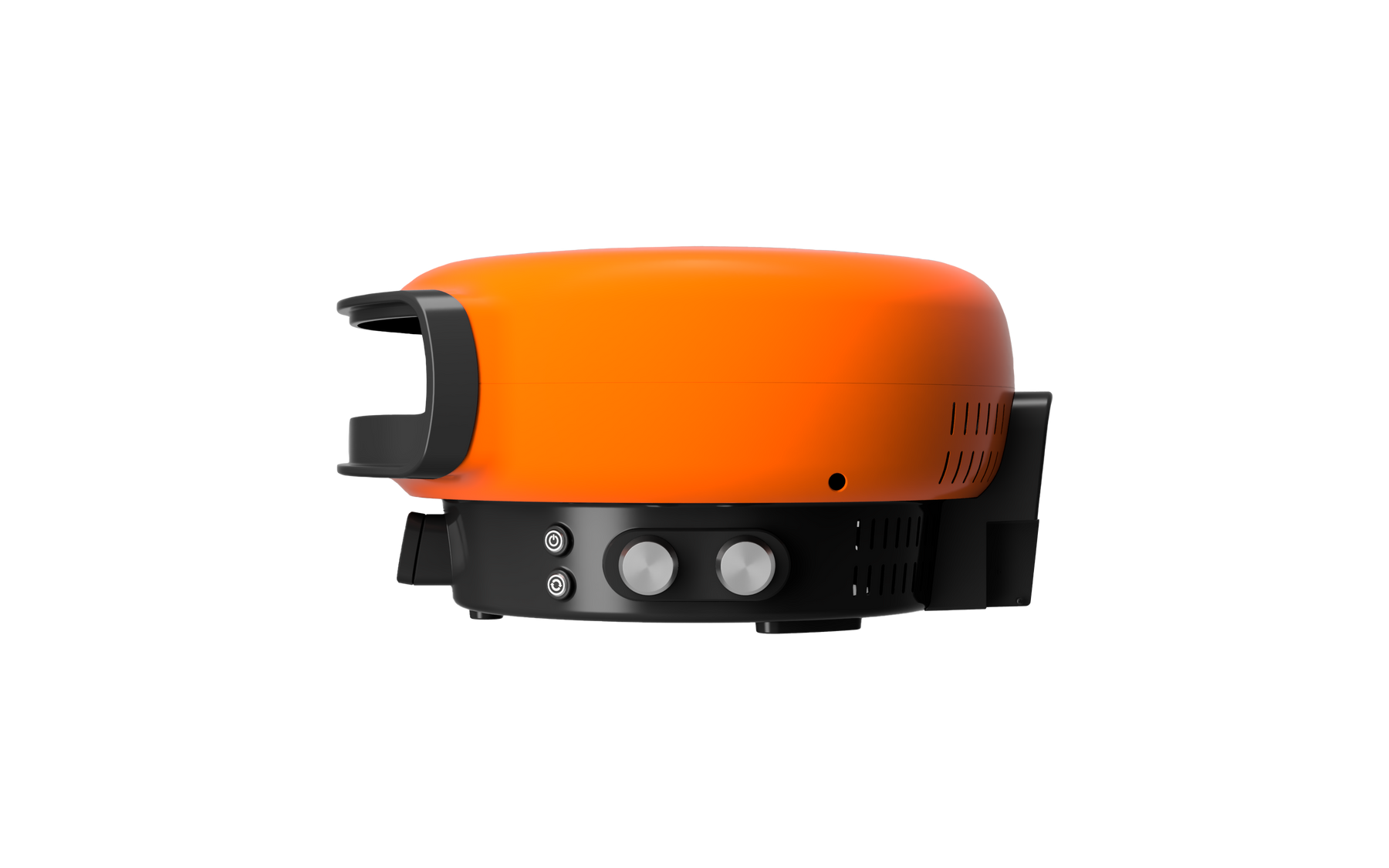

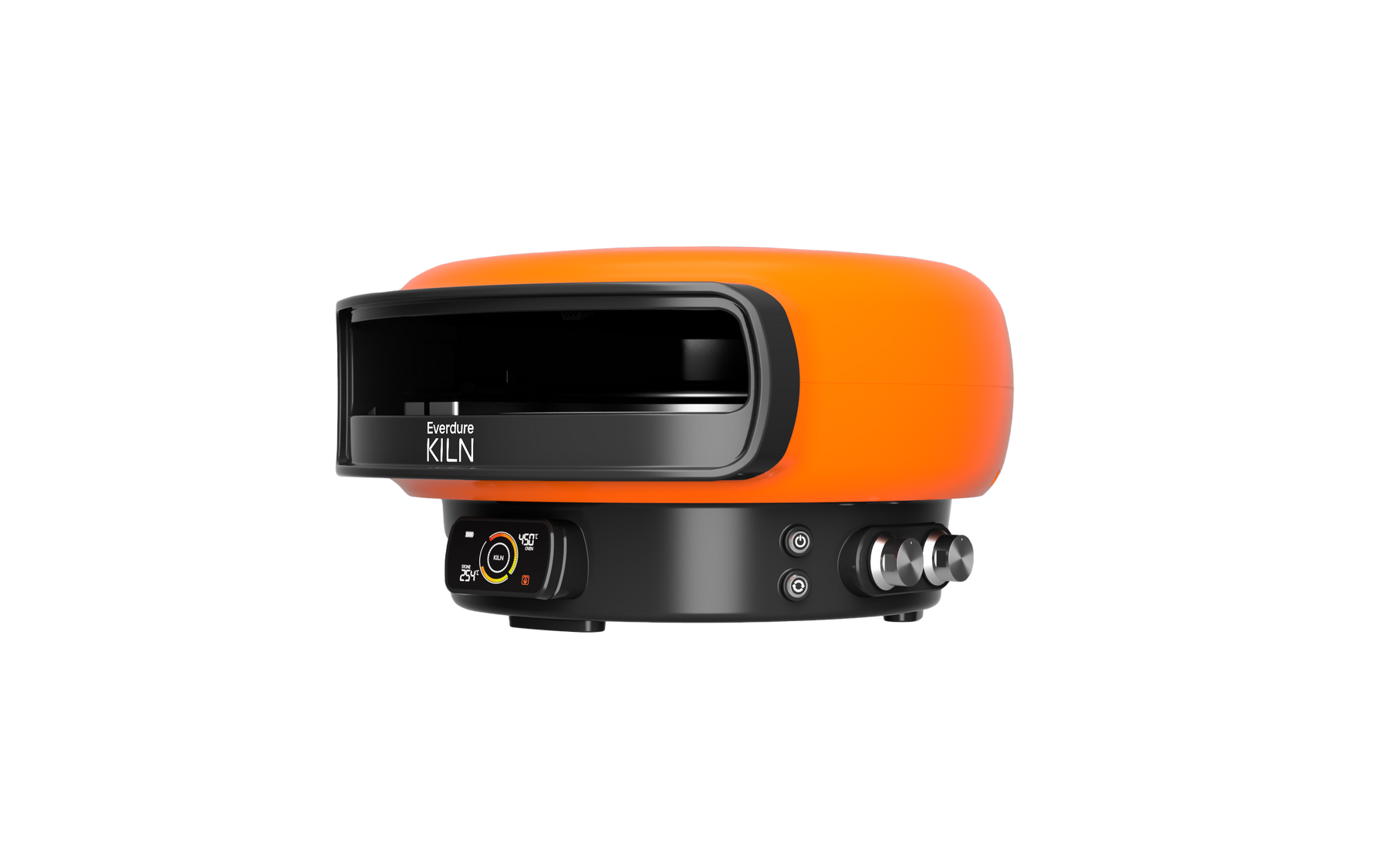

Traditional pizza, perfected.

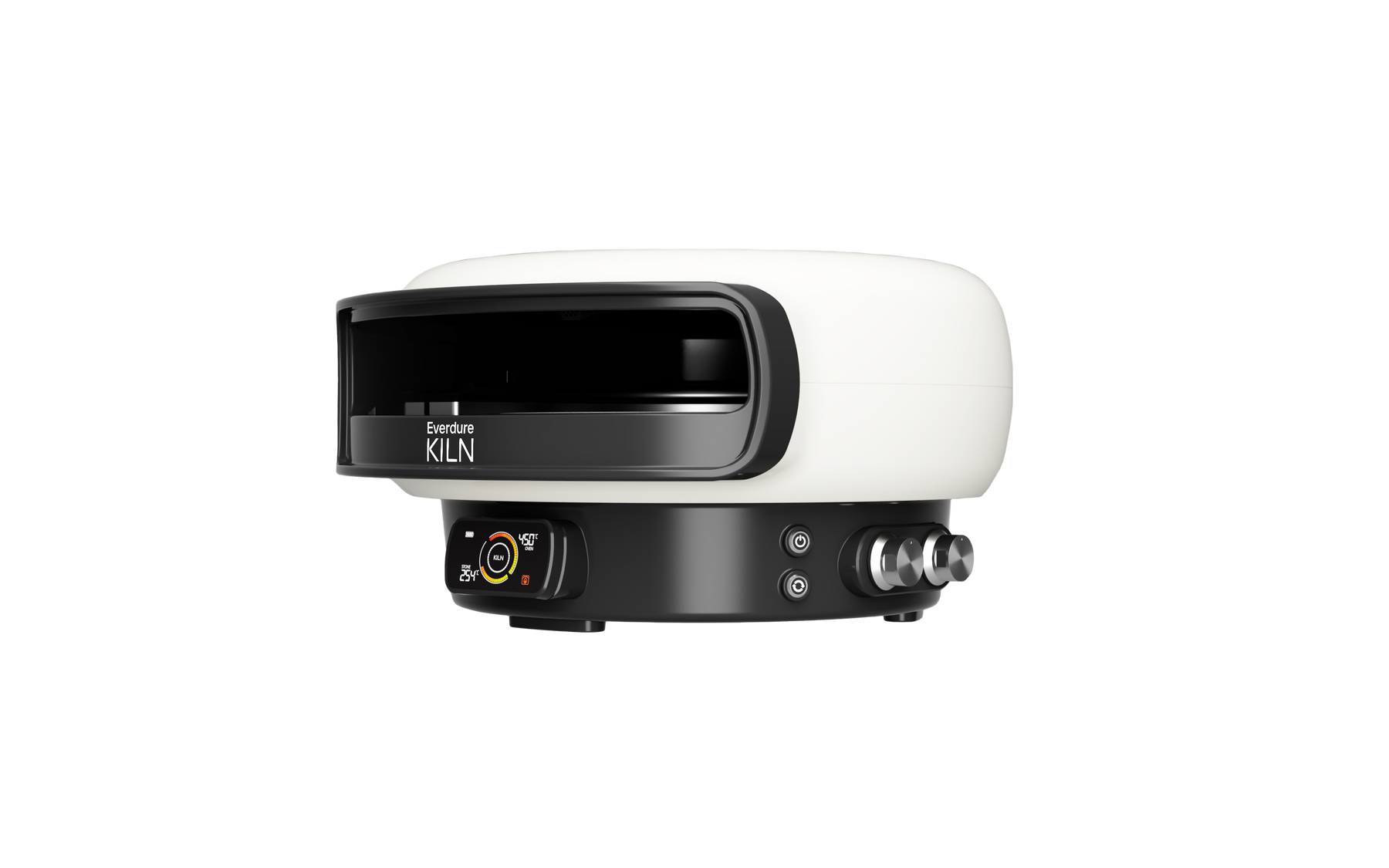

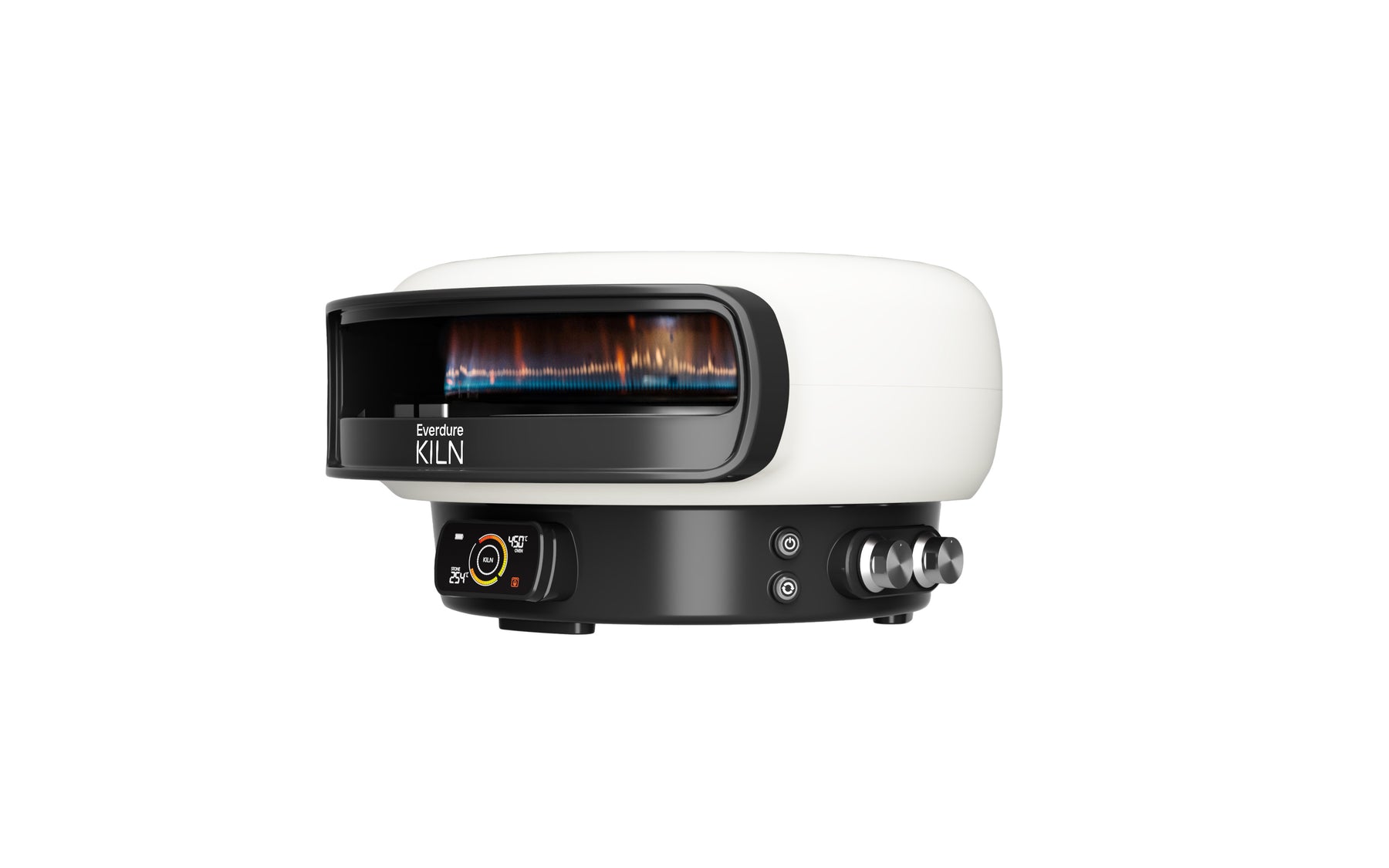

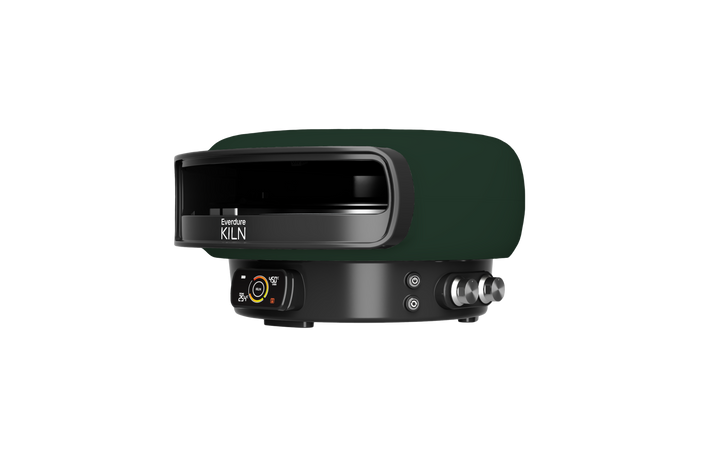

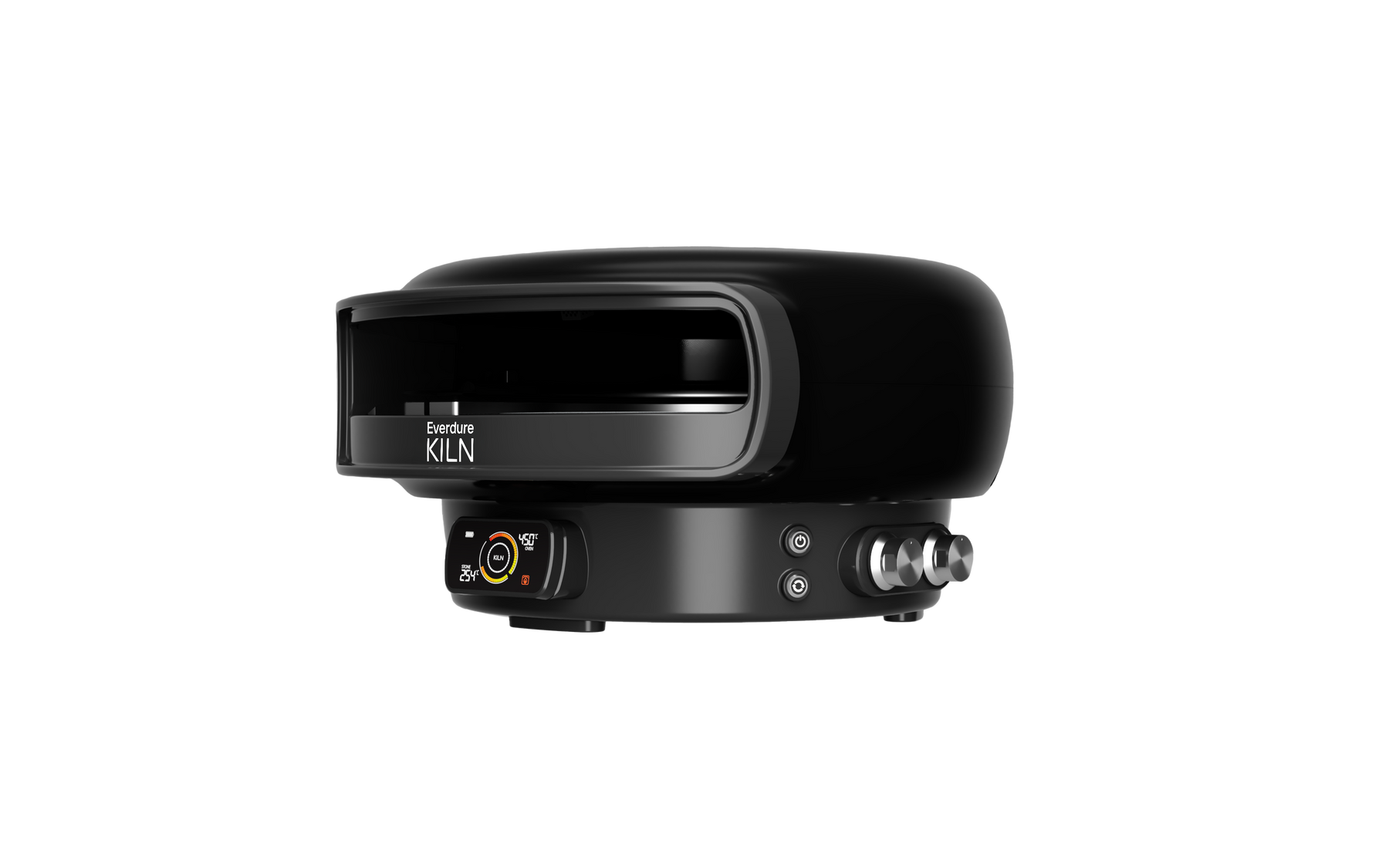

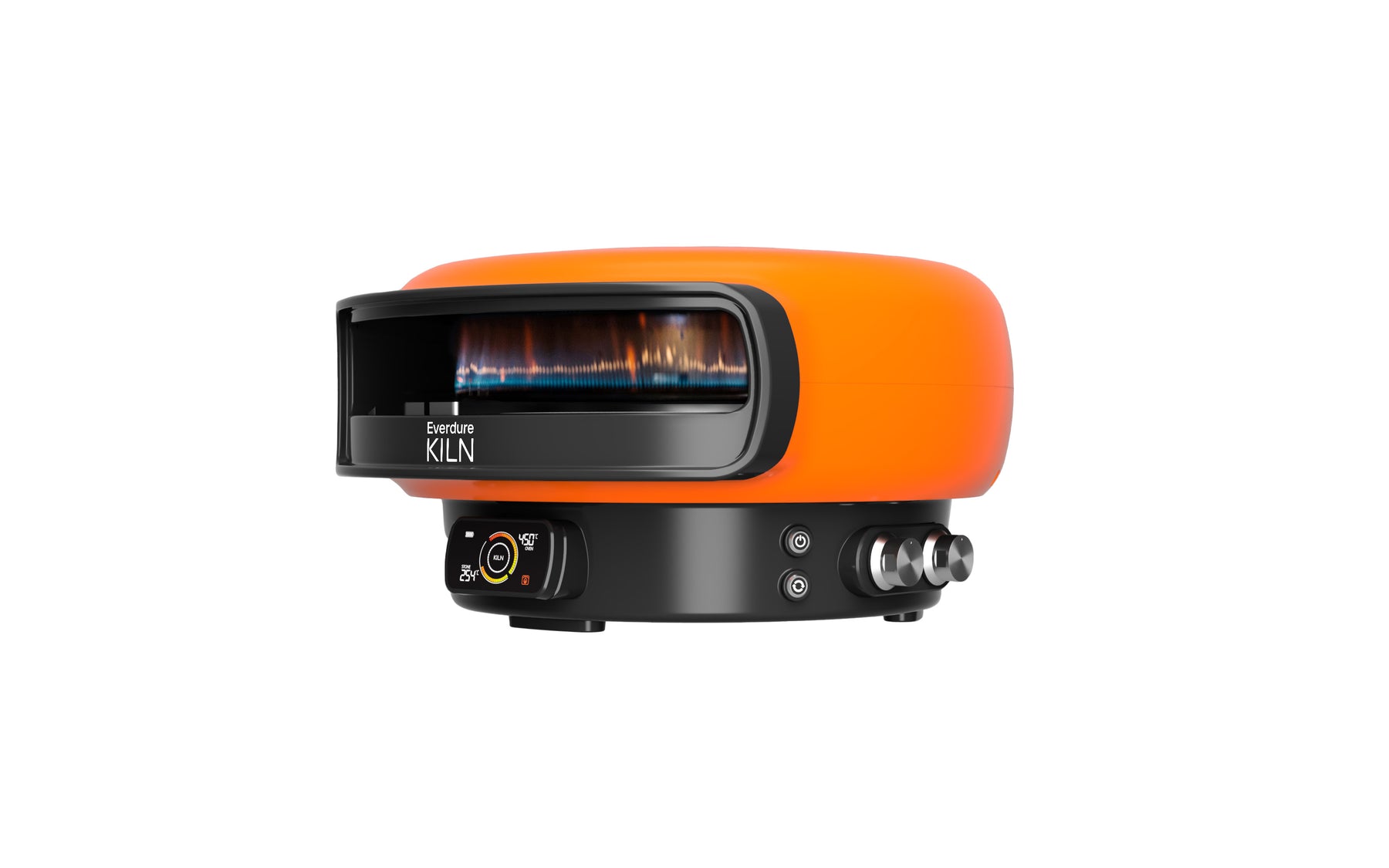

DUAL BURNER PIZZA OVEN WITH STONE ROTATION AND DIGITAL DISPLAY

The KILN DR Series pizza oven is uniquely designed to deliver an effortless and authentic cooking experience at home.

With its multifunctional capabilities, the KILN DR can cook a large pizza in under two minutes, as well as sear or bake a range of dishes. Featuring an automatic rotating turntable, U-shaped burner, and under-stone burner, the KILN DR removes the need to manually turn your pizza and achieve an even cook and perfectly crisp base every time.

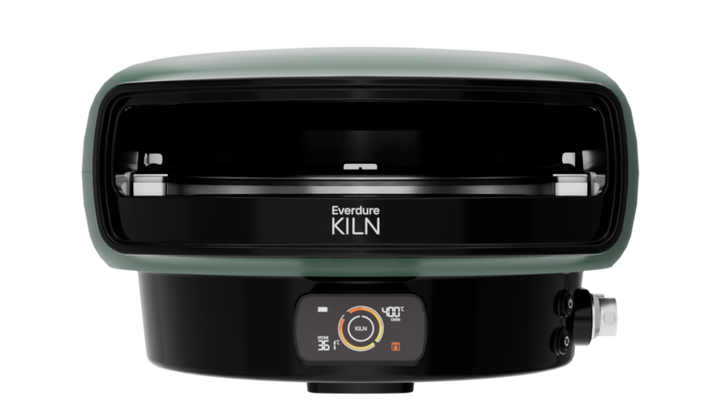

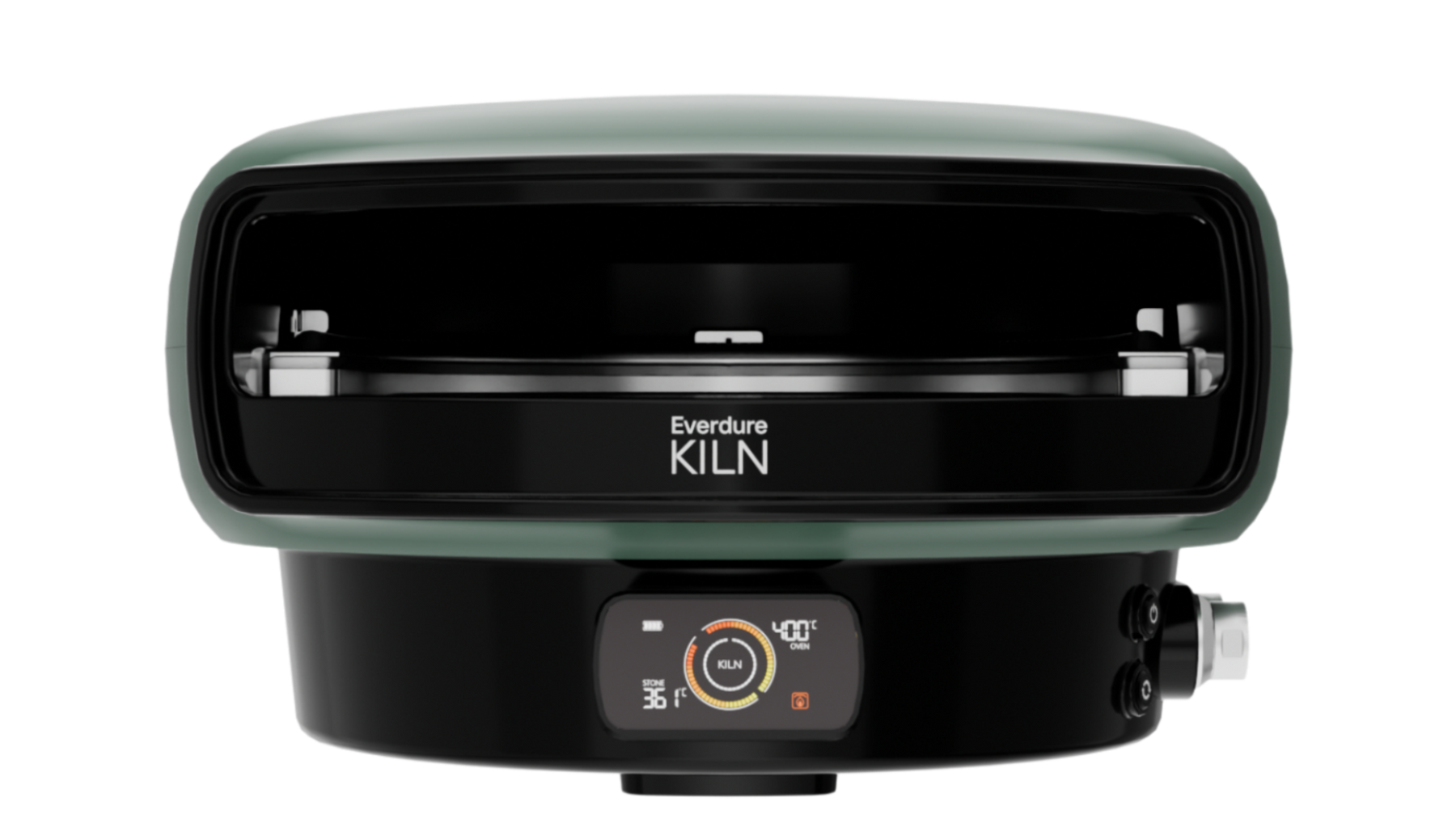

The integrated digital display enhances control and convenience, providing real-time temperature readings, visual heat indicators, and rotation status for effortless precision.

Easy to set up, cook, clean, and store, the KILN DR brings performance and modern design to your outdoor entertaining space.

Color in images may differ slightly from product.

•Digital display to enhance your experience with temperature readings (stone and oven), visual temperature guide, rotation indicator and under-stone burner indicator
•Automatic turntable rotation
•Rotating turntable powered by battery or mains, removing the need to turn pizza manually
•Use as a multifunctional oven to cook a range of other dishes
•Sleek, contemporary design
•Dual-insulation body, maximizing internal heat for energy efficiency
•Room to fit a large 16” pizza or a range of bakeware & cookware
•Cook the perfect pizza in approximately 2 minutes
•Removable pizza stones for easy clean-up
•Designed to fit common-sized benchtops
•Under-stone burner for a perfectly cooked base every time
•U-shaped burner for even heat distribution when cooking
•28 MJ / 9.2kW / 25,450 BTU 2-burner output (LPG / Propane)
•26.4 MJ / 9.2kW / 21,030 BTU 2-burner output (Natural Gas)

Product dimensions:
•Width: 660mm | 25.98in
•Depth: 740mm | 29.17in
•Height: 380mm | 14.96in

Packaging dimensions:
•Width: 820mm | 32.28in
•Depth: 740mm | 29.13in
•Height: 435mm | 17.13in


•Net weight: 70.11 lbs | 31.8 kg
•Gross weight: 91.49 lbs | 41.5 kg

•1 x KILN DR Series chassis
•1 x Display
•1 x LCD connector protective cover
•1 x 16 inch round pizza stone
•1 x front pizza stone
•1 x power adaptor
•Instruction manual
•Hose and regulator - Gas pressure 11 WC (Propane Version)
•Hose and regulator - Gas pressure 4 WC (Natural Gas Version)

You will require 7 x AA batteries (6 x Display & Turntable, 1 x Electric Ignitor) – batteries are not included.

FAQs

No, accessories are sold separately.

7x AA batteries - 1 x for ignition and6x fordisplay andturntable.

Remove all packaging and recycle as per your local government laws. Place the KILN on the Pizza Station or similar benchtop. Insert the stones.

To install the batteries, open the battery compartment cover. Load a set of 6 new AA type batteries into the battery box, ensuring the plus (+) and minus (-) ends are in the correct position, then refit the cover. Alternatively, connect the KILN to mains power. Unscrew the pulse igniter cap to fit one new AA type battery, ensuring the plus (+) and minus (-) ends are in the correct position, then refit the cap. Close the battery compartment cover.

Make sure the burner knobs are turned off, then connect the gas hose to the KILN. The KILN can only be used in an above-ground open-air environment with natural ventilation. DO NOT use the KILN indoors.

We recommend placing your KILNDRSerieson a heat-resistant surface, such as metal or stone. We highly recommend NOT placing your KILN on glass, plastic, or fabrics e.g. tablecloths.

Flame Safeguard System - The gas valve on this appliance has a flame safeguard built in for added safety;when gas flow is stopped in the event the flame isextinguishedwithoutusingthe control knobs.

We don’t recommend using the KILNDRSeriesin adverse weather conditions, and suggest reviewing your local forecast before cooking.

Wear heatproof gloves when handling hot dishes.

Use caution when inserting & removing dishes from the KILN.

Avoid contacting the front fascia surface as minor scratches may occur.

Use caution with the stones - they can retain heat for many hours after cooking.

Do NOT submerge the stone in water.

Prior to cooking for the first time, turn the burner on high for 30 minutes, then turn off and let the oven cool down. Once cool, use a paper towel to wipe away any soot inside. Be careful, the oven may still be hot in some places.Push the main burner knob in and slowly turn it anti-clockwise until you hear it click (8-10 seconds). Hold in for another 10 seconds after ignition, then release. Set the burner to your desired position.Repeat with boost burner knob and press the button to activate the rotating turntable.If the burners do not ignite, leave the knobs at OFF and wait 5 minutes before trying again.Once ignited, leave on high for approximately 10 minutes to heat the stone.The KILN is ready to use once it has reached your desired temperature. Check this by monitoring the digital display reading of the stone and oven temperatures. Turn the main burner knob halfway, then begin cookingWARNING: Do not leave the boost burner activated for an extended period of time without the turntable running, as it may damage the stone.

Refer to your instruction manual that was supplied in your box or contact your local dealer.

Refer to your instruction manual that was supplied in your box or contact your local dealer.

Refer to your instruction manual that was supplied in your box or contact your local dealer.

Always allow the KILN DR Series and stones to cool completely before cleaning—they may take up to 2 hours to cool and can retain heat for many hours.Clean the exterior with mild detergent and a clean cloth, then dry thoroughly. Clean the interior using warm soapy water and a sponge or mild scourer. For stubborn marks, apply a gentle bicarbonate soda paste. Avoid phosphoric-based cleaners, as they may damage the finish.To clean the burners and ignition, use a soft-bristle brush to carefully clear debris.The pizza stones are not dishwasher safe. Brush away food particles using a Pizza Oven Brush or similar, wipe with water, and dry completely.Do NOT submerge the stones in water.

After cooking, allow the unit to cool fully and clean it before placing the protective cover on the KILN DR Series. The cover is made from heavy-duty, water-resistant material designed to protect from the elements; however, for best longevity, store the KILN under cover and in a dust-free environment.During extended periods of non-use, occasionally wipe the interior and exterior to prevent dust and moisture build-up. Proper storage and regular cleaning help maintain the appearance and performance of your KILN DR Series.

Basic troubleshooting information on the KILN DR Series can be found within the user manual.
